tl;dr A step-by-step tutorial to upscale anime images by 2x using Waifu2x and CARN V2 super resolution models.

Practical Machine Learning - Learn Step-by-Step to Train a Model

A great way to learn is by going step-by-step through the process of training and evaluating the model.

Hit the Open in Colab button below to launch a Jupyter Notebook in the cloud with a step-by-step walkthrough.

Continue on if you prefer reading the code here.

Anime Super Resolution in PyTorch

Notebook to do image super resolution on a single anime image automatically with pre-trained deep learning models in PyTorch.

Image Super-Resolution techniques reconstruct a higher-resolution image or sequence from the observed lower-resolution images. In particular we do single-image super-resolution (SISR) which just use a single input image.

We utilise yu45020’s neat PyTorch-based code which re-implements the original waifu2x and includes other image super-resolution models for us to quickly compare results.

The notebook is structured as follows:

Setting up the Environment
Getting the data
Using the Models (Running Inference)

Setting up the Environment

Setup Runtime

The models run on CPU and there’s no need to add a GPU hardware accelerator.

Setup Dependencies

We need to setup the yu45020/Waifu2x library and model checkpoints to run, so execute the command below to get the repository from Github.

!git clone -l -s https://github.com/yu45020/Waifu2x.git waifu2x
%cd waifu2x

Cloning into 'waifu2x'...
warning: --local is ignored
remote: Enumerating objects: 546, done.[K
remote: Total 546 (delta 0), reused 0 (delta 0), pack-reused 546[K
Receiving objects: 100% (546/546), 138.07 MiB | 25.76 MiB/s, done.
Resolving deltas: 100% (284/284), done.
/content/waifu2x

We need to extract the model checkpoints we intend to use with the following code.

%cd model_check_points/Upconv_7/
!7z e anime.7z
%cd ../CRAN_V2/
!unzip -qq -o CRAN_V2_02_28_2019.zip
%cd ../vgg_7/
!7z e art.7z
%cd ../../

Getting Data

Getting Sample Images

An image of Nico Robin from anidb.

We’ll save this image to our local storage and view a preview in our notebook.

import cv2
from urllib.request import urlretrieve
from google.colab.patches import cv2_imshow

# save the image to our local storage
urlretrieve('https://cdn-us.anidb.net/images/main/80187.jpg', '/content/image.jpg')

# display the images in the notebook
cv2_imshow(cv2.imread('/content/image.jpg'))

png

Using the Model (Running Inference)

Now we want to define a function to load and run the waifu2x pre-trained model checkpoints from the directory we have unzipped to. We are running 2x image super resolution.

Specifically we are running the following steps:

Load the input image as img and create a baseline resized image called img_t with bicubic scaling to compare against our super res outputs. Add this to a tensor, final, which we will use to make the grid of images to compare at the end.
Load (.load_pre_train_weights()) each of the model checkpoints specified in the models argument, which is a list of checkpoint .json files.
Split our input image img, if its too large, into patches using the .split_img_tensor() method.
Run the loaded model against each of the patches model(i).
Merge the output patches with .merge_img_tensor(out).
Concat the output super resolution upscaled image to the previous set of outputs (including the baseline img_t) using the torch.cat() function.
Save the final tensor as an image grid of all the outputs using the TorchVision utility save_image() function.

from utils.prepare_images import *
from Models import *
from torchvision.utils import save_image


def run_waifu2x(input_file, models, output_file):
  model = UpConv_7()
  img = Image.open(input_file).convert("RGB")
  img_resized = img.resize((img.size[0] * 2, img.size[1] * 2), Image.BICUBIC)
  img_t = to_tensor(img_resized).unsqueeze(0)
  # put the original image in the final tensor
  final = img_t
  for model_file in models:
    model.load_pre_train_weights(json_file=model_file)

    # overlapping split
    # if input image is too large, then split it into overlapped patches
    # details can be found at [here](https://github.com/nagadomi/waifu2x/issues/238)
    img_splitter = ImageSplitter(seg_size=64, scale_factor=2, boarder_pad_size=3)
    img_patches = img_splitter.split_img_tensor(img, scale_method=None, img_pad=0)
    with torch.no_grad():
        out = [model(i) for i in img_patches]
    img_upscale = img_splitter.merge_img_tensor(out)

    # concat the upscaled image to the final tensor
    final = torch.cat([final, img_upscale])

  # save the image using the torchvision util that allows us to draw a grid of images from a tensor
  save_image(final, output_file, nrow=(1+len(models)))

Run the model on our input image /content/image.jpg to get an output grid of images for comparison, /content/waifu2x_out.jpg. We will run the noise0, noise2 and no noise models against our image and compare with the baseline.

run_waifu2x('/content/image.jpg', ['model_check_points/Upconv_7/noise0_scale2.0x_model.json',
                                   'model_check_points/Upconv_7/noise2_scale2.0x_model.json',
                                   'model_check_points/Upconv_7/scale2.0x_model.json'], '/content/waifu2x_out.jpg')

Display the image grid output. We can see that the image is now 2x the original size. The leftmost image in the grid is our baseline that was scaled using Image.BICUBIC while the rest of the images are using Waifu2x models. I prefer the noise2 model, the third image in the grid, most of the time.

# display the output grid of images
cv2_imshow(cv2.imread('/content/waifu2x_out.jpg'))

png

Now we try the CARN V2 model. Similarly we define a function to run against our input image.

from utils.prepare_images import *
from Models import *
from torchvision.utils import save_image


def run_carn(input_file, models, output_file):
  model = CARN_V2(color_channels=3, mid_channels=64, conv=nn.Conv2d,
                        single_conv_size=3, single_conv_group=1,
                        scale=2, activation=nn.LeakyReLU(0.1),
                        SEBlock=True, repeat_blocks=3, atrous=(1, 1, 1))
  model = network_to_half(model)
  img = Image.open(input_file).convert("RGB")
  img_resized = img.resize((img.size[0] * 2, img.size[1] * 2), Image.BICUBIC)
  img_t = to_tensor(img_resized).unsqueeze(0)
  # put the original image in the final tensor
  final = img_t
  for model_file in models:
    model.load_state_dict(torch.load(model_file, 'cpu'))
    model = model.float()

    # overlapping split
    # if input image is too large, then split it into overlapped patches
    # details can be found at [here](https://github.com/nagadomi/waifu2x/issues/238)
    img_splitter = ImageSplitter(seg_size=64, scale_factor=2, boarder_pad_size=3)
    img_patches = img_splitter.split_img_tensor(img, scale_method=None, img_pad=0)
    with torch.no_grad():
        out = [model(i) for i in img_patches]
    img_upscale = img_splitter.merge_img_tensor(out)

    # concat the upscaled image to the final tensor
    final = torch.cat([final, img_upscale])

  # save the image using the torchvision util that allows us to draw a grid of images from a tensor
  save_image(final, output_file, nrow=(1+len(models)))

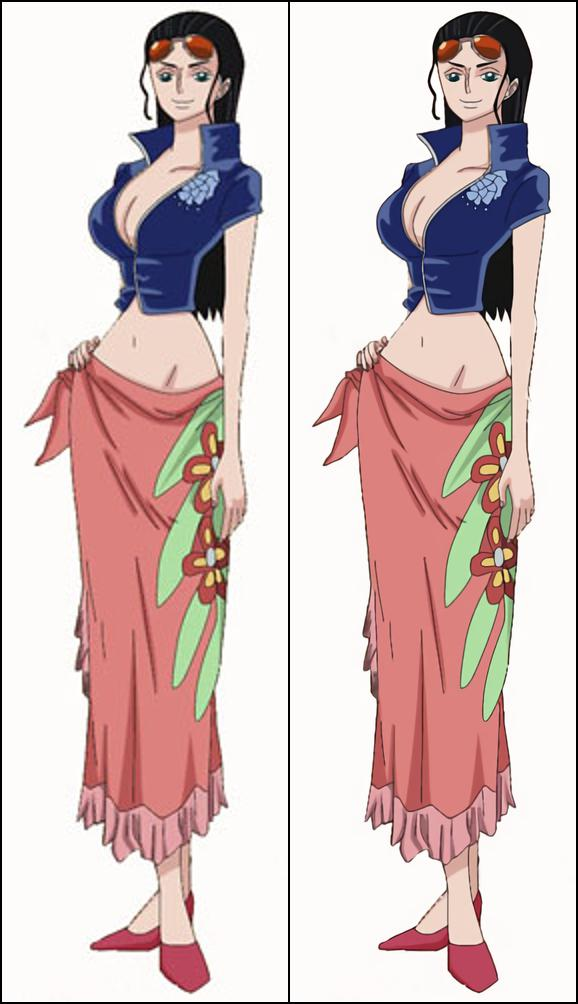

We run the function against our input image and output the file to CARN_V2_out.jpg and display it using cv2_imshow. The left side image is the baseline while the right side image is the upscaled super-res image.

run_carn('/content/image.jpg', ['model_check_points/CRAN_V2/CARN_model_checkpoint.pt'], '/content/CARN_V2_out.jpg')
cv2_imshow(cv2.imread('/content/CARN_V2_out.jpg'))

png

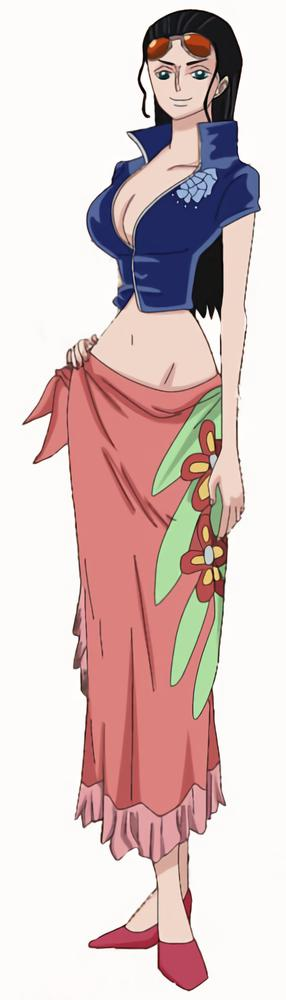

If you want to save only your output image, change the output function to save_image(img_upscale, '/content/CARN_V2_single.jpg'). The code below does just this.

from utils.prepare_images import *
from Models import *
from torchvision.utils import save_image

model = CARN_V2(color_channels=3, mid_channels=64, conv=nn.Conv2d,
                      single_conv_size=3, single_conv_group=1,
                      scale=2, activation=nn.LeakyReLU(0.1),
                      SEBlock=True, repeat_blocks=3, atrous=(1, 1, 1))
model = network_to_half(model)
model.load_state_dict(torch.load('model_check_points/CRAN_V2/CARN_model_checkpoint.pt', 'cpu'))
model = model.float()
img = Image.open('/content/image.jpg').convert("RGB")
img_splitter = ImageSplitter(seg_size=64, scale_factor=2, boarder_pad_size=3)
img_patches = img_splitter.split_img_tensor(img, scale_method=None, img_pad=0)
with torch.no_grad():
    out = [model(i) for i in img_patches]
img_upscale = img_splitter.merge_img_tensor(out)
save_image(img_upscale, '/content/CARN_V2_single.jpg')
cv2_imshow(cv2.imread('/content/CARN_V2_single.jpg'))

png

We can connect to Google Drive with the following code. You can also click the Files icon on the left panel and click Mount Drive to mount your Google Drive.

The root of your Google Drive will be mounted to /content/drive/My Drive/. If you have problems mounting the drive, you can check out this tutorial.

from google.colab import drive
drive.mount('/content/drive/')

You can move the output files which are saved in the /content/ directory to the root of your Google Drive.

import shutil
shutil.move('/content/CARN_V2_single.jpg', '/content/drive/My Drive/CARN_V2_single.jpg')
